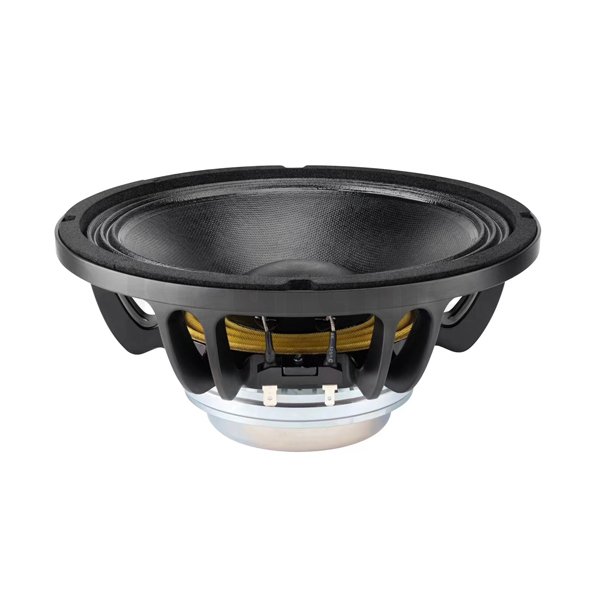

10″ line array speaker neodymium |
||
Nominal Diameter |
250/10 |
mm/inch |
Nominal Impedance |
16 |
Ohm |
Minimum Impedance |
12 |
Ohm |
Power handling |
350 |
Watts |
Continuous Program |
700 |
Watts |
Sensitivity (1W/1m)3 |
97.5 |
dB |
Frequency Range |
55-3000 |
Hz |
Voice Coil Diameter |
76/3″ |
mm/inch |
Winding Material |
Aluminum |
|
Former Marerial |
Cast Aluminum |
|
Winding Depth |
19 |
mm |
Magnetic Gap Depth |
10 |
mm |
Flux density |
1.35 |
T |
Thiele-Small parameters |
||
Fs |
55 |
Hz |
Re |
10 |
Ohm |
Qes |
0.24 |
|
Qms |
6.35 |
|
Qts |
0.23 |
|
Vas |
37.9 |
mM3 |
No |
2.97 |
% |
X max |
7 |
mm |
X mech |
12.5 |
mm |
Mms |
36.8 |
gr |
BI |
23.5 |
Tm |
Le |
62 |
mH |
Cms |
0.203 |
mm/N |
Sd |
0.036 |
M2 |
