Nominal Diameter |
460/18 |
mm/inch |

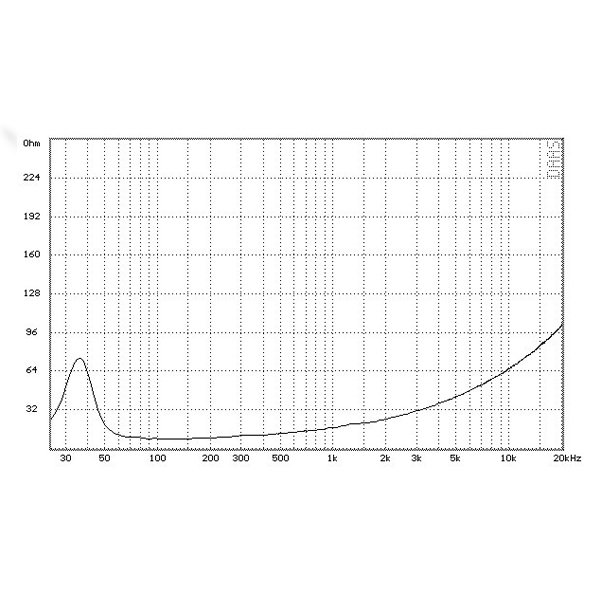

Nominal Impedance |
8 |
Ohm |
Minimum Impedance |
6 |
Ohm |
Power handling(AES) |
1200 |
Watts |
Continuous Program |
2400 |
Watts |
Sensitivity (1W/1m)3 |
94.91 |
dB |

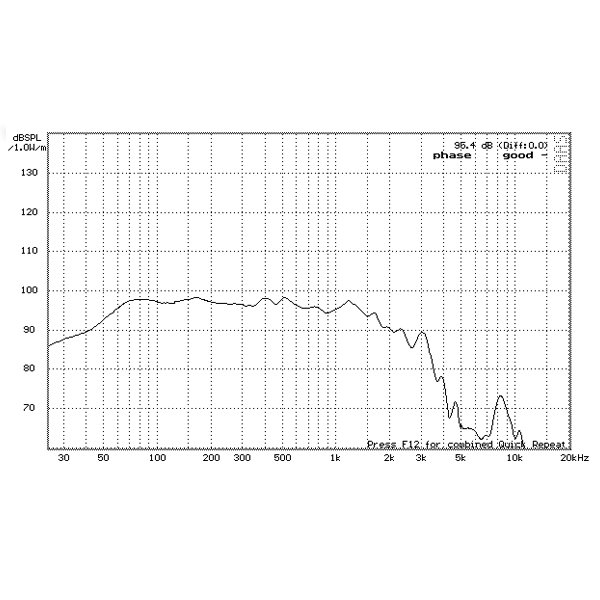

Frequency Range |
36.34-2000 |
Hz |
Voice Coil Diameter |
100/4.0 |
mm/inch |
Winding Material |
Copper |
in/out |
Former Marerial |
Til |
|
Winding Depth |
28/1.1 |
mm/inch |
Magnetic Gap Depth |
14/0.6 |
mm/inch |
Flux density |
1.2 |
T |
Thiele-Small parameters |
||
Fs |
36.34 |
Hz |
Re |
6 |
Ohm |
Qes |
0.539 |
|
Qms |
15.9 |
|
Qts |
0.521 |
|
Vas |
224.9 |
liters |
No |
1.909 |
% |
X max |
10 |
mm |
X mech |
23 |
mm |
Mms |
221.2 |
gr |
BI |
24.17 |
Tm |
Le |
3.294 |
mH |
Cms |
mm/N |
|
Sd |
M2 |

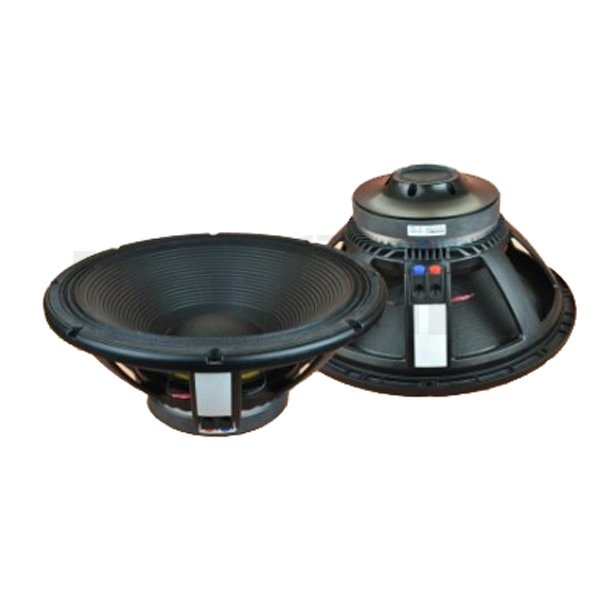

18SW027
2000 W continuous program power capacity.
99.3 mm copper voice coil.
36.34–2000 Hz response.
94.91 dB Sensitivity.
