PARAMETER |
||

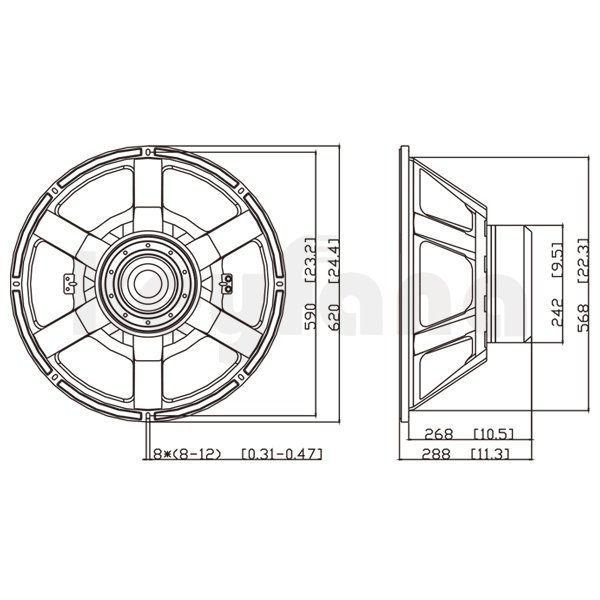

Nominal Diameter |
620/24 |
mm/inch |
Nominal Impedance |
4 |
Ohm |
Minimum Impedance |
4.8 |
Ohm |
Power handling(AES) |
2500 |
Watts |
Continuous Program |
5000 |
Watts |
Sensitivity (1W/1m)3 |
97.2 |
dB |

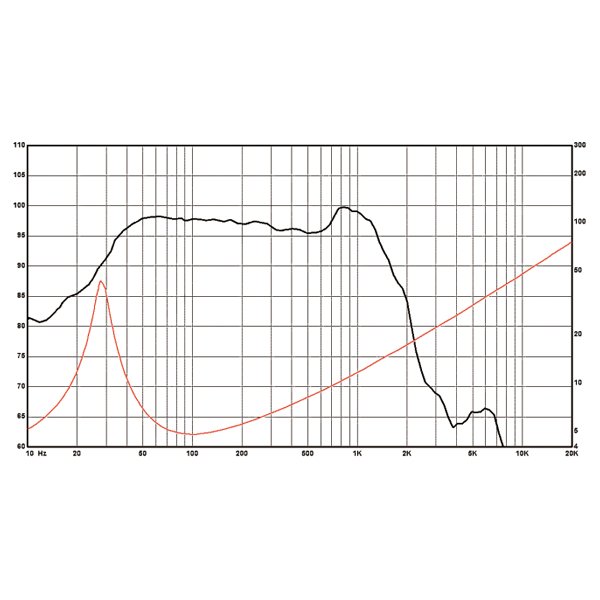

Frequency Range |
28-1000 |
Hz |
Voice Coil Diameter |
151/6 |
mm/inch |
Winding Material |
Copper |
in/out |
Former Marerial |
Glass Fiber |
|
Winding Depth |
44 |
mm |
Magnetic Gap Depth |
17 |
mm |
Flux density |
T |
|
Thiele-Small parameters |
||
Fs |
28.2 |
Hz |
Re |
3.6 |
Ohm |
Qes |
0.39 |
|
Qms |
5.67 |
|
Qts |
0.37 |
|
Vas |
486 |
liters |
η0 |
2.6 |
% |
X max |
17.55 |
mm |
X mech |
28.5 |
mm |
Mms |
523 |
gr |
BI |
29.8 |
N/A |
Le |
2.09 |
mH |
Cms |
0.06 |
mm/N |
Sd |
2376 |
CM2 |
SUB242400

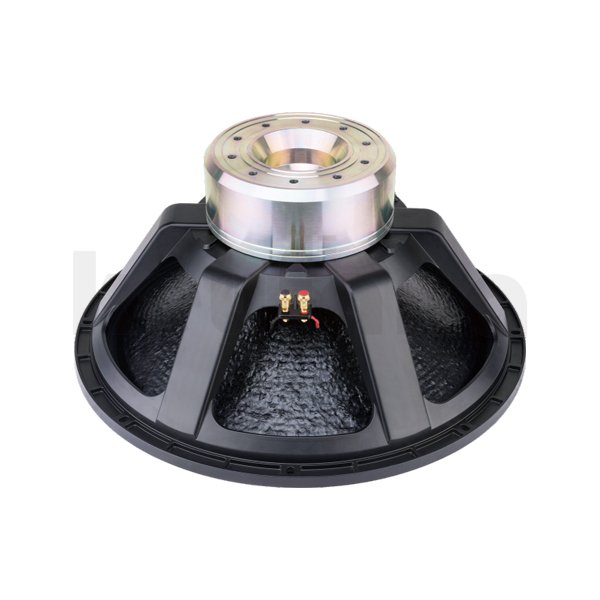

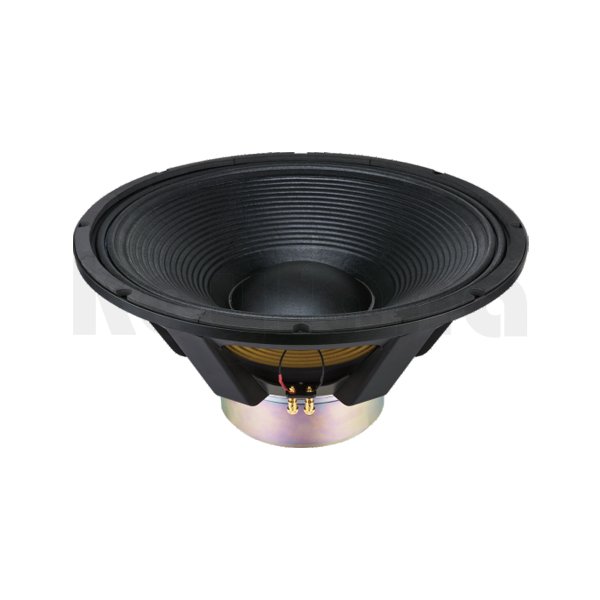

24″ SUBWOOFER NEODYMIUM MAGNET ALUMINIUM BASKET DRIVER
6 INCH COPPER VOICE COIL
97.2 dB/SPL SENSITIVITY
57mm PEAK TO PEAK MAXIMUM EXCURSION
